LINX TT 500
Flexible packaging and other flexible material printing at widths up to 32mm
Available with a 32mm wide printhead the TT 500 is capable of printing onto flexible packaging and other materials at print rates of up to 150 prints per minute and line speeds of up to 500mm per second
Order NowShare this product :

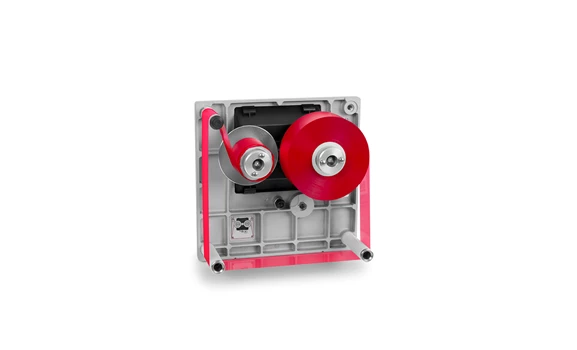

The Linx TT 500 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 32mm x 100mm.
Low cost of ownership, increased uptime, easy to use.
Printing Capabilities
Ribbon widths
20mm to 33mm
Print area - intermittent motion mode
up to 32mm (W) x 47mm (L)
Print area - continuous motion mode
up to 32mm (W) x 100mm (L)
Maximum throughput
150 prints per minute
Maximum ribbon length
700m
Print speed - intermittent motion mode
50mm/sec to 300mm/sec
Print speed - continuous motion mode
40mm/sec to 500mm/sec
Ribbons
Range of types, colours, lengths and widths
Programming
- Linx CLARiSOFT message design software
- Barcodes
- Fixed/variable text and numeric fields
- Auto incrementing/ decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation
- Formats for shift coding
- Multiple graphic formats
- …and more
Physical Characteristics
- Operates without compressed air
- Class leading lightened push button open/push to close, simplest ribbon threading cassette system
- Clutchless bi-directional ribbon drive
- 5.0” WVGA (800x480) touch screen graphic user interface
- Universal bracket systems for integrating printer into intermittent and continuous motion packaging machinery
Operates without compressed air reducing installation and operating costs while maintaining consistent print quality- Large range of ribbons to better meet your application and production line printing needs
- Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
- Optimal number of user maintainable parts that are easy to replace
- Easy to set and maintain print quality with electronic pressure control
- Simple cassette system minimizes errors during ribbon replacements
- Easy to use colour touch screen - fewer errors and hassle-free operation
